A stepper motor is a motor controlled by a series of electromagnetic coils. The center shaft has a series of magnets mounted on it, and the coils surrounding the shaft are alternately given current or not, creating magnetic fields which repulse or attract the magnets on the shaft, causing the motor to rotate. There are two basic types of stepper motors, unipolar steppers and bipolar steppers.

Unipolar Stepper Motors

The unipolar stepper motor for sale has five or six wires and four coils (actually two coils divided by center connections on each coil). The center connections of the coils are tied together and used as the power connection. They are called unipolar steppers because power always comes in on this one pole.

To control the stepper, apply voltage to each of the coils in a specific sequence. The sequence would go like this:

Bipolar stepper motors

The bipolar stepper motor for sale usually has four wires coming out of it. Unlike unipolar steppers, bipolar steppers have no common center connection. They have two independent sets of coils instead. You can distinguish them from unipolar steppers by measuring the resistance between the wires. You should find two pairs of wires with equal resistance. If you’ve got the leads of your meter connected to two wires that are not connected (i.e. not attached to the same coil), you should see infinite resistance (or no continuity). Like other motors, stepper motors require more power than a microcontroller can give them, so you’ll need a separate power supply for it. Ideally you’ll know the voltage from the manufacturer, but if not, get a variable DC power supply, apply the minimum voltage (hopefully 3V or so), apply voltage across two wires of a coil (e.g. 1 to 2 or 3 to 4) and slowly raise the voltage until the motor is difficult to turn. It is possible to damage a motor this way, so don’t go too far.

To control a bipolar stepper motor, you give the coils current using to the same steps as for a unipolar stepper motor. However, instead of using four coils, you use the both poles of the two coils, and reverse the polarity of the current.

So for examples, if you have a 1.8-degree stepper, and it’s turned 200 steps, then it’s turned 1.8 x 200 degrees, or 360 degrees, or one full revolution. In every step of the sequence, two wires are always set to opposite polarities. Because of this, it’s possible to control steppers with only two wires instead of four, with a slightly more complex circuit. The stepping sequence is the same as it is for the two middle wires.

Motors make the world spin around, and now you can easily control motors with digital stepper motor driver and the dc Motor & Stepper driver!  Simple dc motors can moved forwards and backwards, perfect for moving the wheels on a robot or vehicle.  Stepper motors can precisely move in small increments, like moving the nozzle of a 3D printer up and down with millimeter accuracy. Since the motor only uses the I2C (SDA & SCL pins), it works with any and all Feathers. For this reason, stepper motors are the motor of choice for many precision motion control applications. Stepper motors come in many different sizes and styles and electrical characteristics. This guide details what you need to know to pick the right motor for the job. In this lesson you will learn how to control a stepper motor using your pi and the same motor control chip that you used with the dc motor in this part.

The part will also show you how to use an alternative driver chip, the ULN2803.For this project, it does not really matter if you use a L293D or a ULN2803. The lower cost of the ULN2803 and the four spare outputs, that you could use for something else, probably make it the best choice if you don’t have either chip. The motor is quite low power and suffers less from the surges in current than dc motors and servos (which use DC motors). The original hybrid stepper motor is one of our most beloved shields, which is why we decided to squish it all together on a motor to make something even smaller, lighter, and more portable! Instead of using a latch and the Arduino’s PWM pins, we have a fully-dedicated PWM driver chip onboard. This chip handles all the motor and speed controls over I2C.

This project will therefore work okay powered from the 5V line of the Raspberry Pi, as long as the Pi is powered from a good supply of at least 1A. Comes with an assembled & tested Feather Wing, terminal blocks & plain header. Some soldering is required to assemble the headers on. Stacking headers not included, but we sell them in the shop so if you want to stack shields, please pick them up at the same time. Feather and motors are not included but we have lots of motors in the shop. You can use any DC or stepper motors that run from 4.5-13.5VDC and draw under 1.2A per coil. You’ll likely also need to provide some external power supply for your motors, since its not suggested you run motors from the Feather’s lipoly battery. For a healthy culture and delicious tasting ‘buch you’ll need to maintain a pretty high temperature (~77F/25C) while brewing (5-7 days). Keeping the brew that warm is challenging in colder climates. With a little help from a terrarium heater and some electronics, I created a thermostat for brewing year round.

There are three basic types of step motors: variable reluctance, permanent magnet, and hybrid. This discussion will concentrate on the hybrid stepper motor, since these step motors combine the best characteristics of the variable reluctance and permanent magnet motors. They are constructed with multi-toothed stator poles and a permanent magnet rotor. Standard hybrid motors have 200 rotor teeth and rotate at 1.8º step angles. Because they exhibit high static and dynamic torque and run at very high step rates, hybrid step motors are used in a wide variety of commercial applications including computer disk drives, printers/plotters, and CD players. Some industrial and scientific applications of stepper motors include robotics, machine tools, pick and place machines, automated wire cutting and wire bonding machines, and even precise fluid control devices.

HALF STEP—half step simply means that the step motor is rotating at 400 steps per revolution. In this mode, one winding is energized and then two windings are energized alternately, causing the rotor to rotate at half the distance, or 0.9°. Although it provides approximately 30% less torque, half-step mode produces a smoother motion than full-step mode.

FULL STEP—standard hybrid stepping motors have 200 rotor teeth, or 200 full steps per revolution of the motor shaft. Dividing the 200 steps into the 360° of rotation equals a 1.8° full step angle. Normally, full step mode is achieved by energizing both windings while reversing the current alternately. Essentially one digital pulse from the driver is equivalent to one step.

Linear Motion Control—the rotary motion of a stepper motor can be converted to linear motion using a lead screw/worm gear drive system. The lead, or pitch, of the lead screw is the linear distance traveled for one revolution of the screw. If the lead is equal to one inch per revolution, and there are 200 full steps per revolution, then the resolution of the lead screw system is 0.005 inches per step. Even finer resolution is possible by using the step motor/drive system in microstepping mode.

The stepper motor for sale driver receives step and direction signals from the indexer or control system and converts them into electrical signals to run the step motor. One pulse is required for every step of the motor shaft. In full step mode, with a standard 200-step motor, 200 step pulses are required to complete one revolution. The speed of rotation is directly proportional to the pulse frequency. Some drivers have an on-board oscillator which allows the use of an external analog signal or joystick to set the motor speed. The choice of a step motor depends on the application’s torque and speed requirements. Use the motor’s torque-speed curve (found in each drive’s specifications) to select a motor that will do the job. Every stepper drive in the line shows the torque-speed curves for that drive’s recommended motors. If your torque and speed requirements can be met by multiple step motors, choose a drive based upon the needs of your motion system- step/direction, stand-alone programmable, analog inputs, microstepping- then choose one of the recommended motors for that drive. The recommended motor list is based on extensive testing by the manufacturer to ensure optimal performance of the step motor and drive combination.

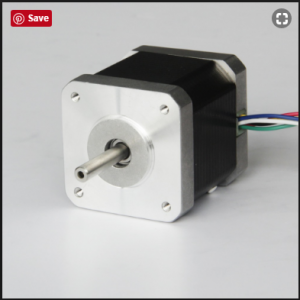

Stepper motors are brushless motors that use multi-toothed electromagnets to define the position. The electromagnets are fixed around a centralized gear. NEMA numbers define the standard dimensions of a faceplate for mounting a motor. NEMA 17 stepper motors for sale are stepper motors with a 43.2mm x 43.2mm (1.7 inch x 1.7 inch) faceplate. They are heavier and larger than a NEMA 14, but their size is what ensures more room for higher torque. NEMA 17 is the most common size for stepper motors used in 3D printers. They can be designed and manufactured to have different mechanical and electrical specifications to suit the 3D printer that you want to build.

When looking for a NEMA 17 stepper, remember that the name is merely the frame size standard, which defines the dimensions of a mounting faceplate. You need to make sure that you are getting the right stepper based on the motor’s electrical specifications. A high torque NEMA 17 stepper that can provide 200 steps per revolution (1.8-degree step angle) is one of the options to consider for 3D printers. Be sure to check the model and specifications of your 3D printer before you buy a NEMA 17.

Some companies can manufacture and design custom NEMA 17 stepper motors for your 3D printer. The service comes with custom winding and housing to suit specific dimensional and application needs. You can choose different lead wires and include lubricant and bearing options in case you need parts for high temperature and humid operations.

Custom NEMA 17 stepper motors are ideal for custom 3D printer applications that require a specific lead length, shaft size, frame size, or body length. You can buy NEMA 17 steppers online. Look for a reputable supplier of small electric motors with years of experience working for a range of industries. This way, you can be sure to get high-quality stepper motors at the right size and at a reasonable price.

The stepper motor (and power supply voltage) that you choose should depend on what you intend to do with it. Ideally, the stepper motor must provide sufficient power at the highest speed based exactly on what the application requires. Hence, you need to make sure that it does not exceed specific speed requirements. For instance, a maximum shaft power that you can sustain with a drive that functions at 80VDC and 7A is one third of a horsepower or at 250W. In this case, you need a triple or double stacked NEMA 34 motors.

‘NEMA 34’ pertains to a frame size that is 3.4 inches in diameter. NEMA 34 stepper motors for sale have different lengths to suit various applications, like CNC mills and industrial machinery. NEMA 34 motors are ideal for mechanical power of about 200 watts. Reliability is a factor that can determine the type of power that you need for motors. Step motors are typically open-loop, so if you want a design that can generate full torque, the NEMA-34 is a good choice.

You have two choices when you need to use NEMA 34 stepper motors in a bipolar mode, which is advisable to ensure the best performance. Your first choice is to go for a parallel type for a high-speed motors, and the other is to go for the series type connection if you need to limit the phase current. Some suppliers of motor parts can customize the size of the shaft. For example, a 14mm shaft provides stability when used with a belt transmission.

The high torque of NEMA 34 motors makes them suitable for special CNC applications. They can be customized to suit certain requirements. Leading suppliers of small motor parts can customize the housing and winding to make sure that you are getting NEMA 34 stepper motors that are according to your specific application needs and dimensional requirements.

NEMA 34 stepper motors (nema 23 geared stepper motor)can be customized to suit special lengths or have Teflon leads, heat shrink, connectors, pins, and cable harnesses. Some suppliers can provide lubricant and bearing options in case you need NEMA 34 stepper motors for humid or high-temperature environments. Look for a reputable supplier of small electric motors that has a global presence to minimize your supply chain costs.

We have expanded its range of stepper motors with the HH series hollow shaft motors from its USA distribution partner Applied Motion Products. With high-torque NEMA 17 motor and NEMA 23 motor frame options in a choice of stack lengths, the hollow shaft is claimed to facilitate direct assembly of a lead screw without the need for a coupling – keeping hardware to a minimum and simplifying design for machine builders.

The hollow shaft stepper motor is also said to allow customised shafts or other power transmission components to be added to the motor without the lead times that specials may take and also enables small quantities of specials to be produced at reasonable cost.

The internal shaft diameter for the 17 and 23 frame motors is 5 and 8mm respectively. The holding torque across the 2-phase HH series ranges from 0.45 to 2.3Nm with current ratings from 2 to 3A per phase. The motors are supplied with a detachable lead/connector pigtail for straightforward installation in the customer’s application. The 200/step/rev motors can be used with stepper drives across the AMP range, including the microstepping ST5 which offers sophisticated current control and multiple motion control options from simple streaming commands to Ethernet/IP communication.
